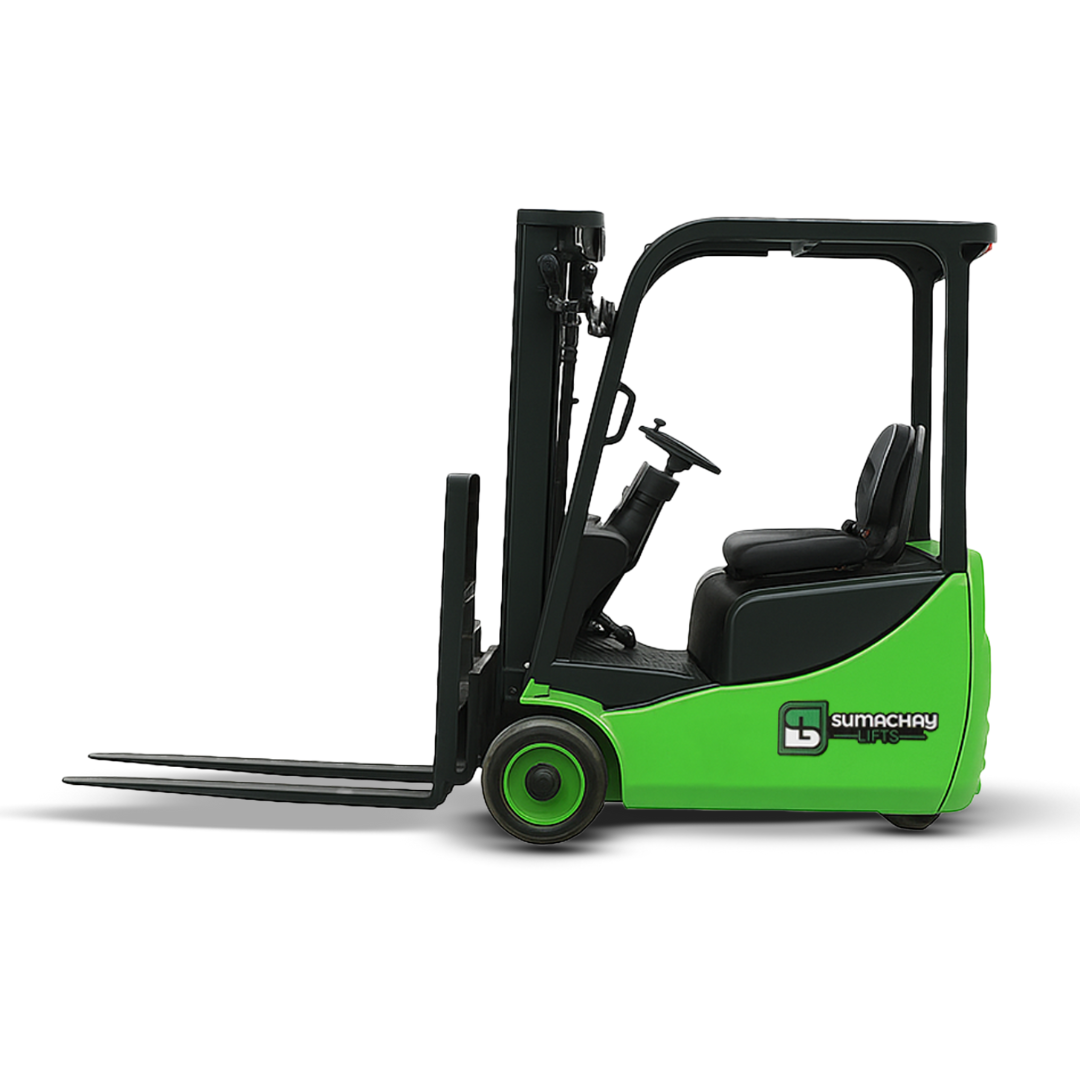

SEF1545 Economical Electric Forklift - Counter balanced, 1500 kgs capacity - Lithium-ion Powered

Name: SST15 Electric Pallet Stacker
Price: 45999.00 INR

Rs. 970,000.00

~~Rs. 1,470,000.00~~ Rs. 970,000.00

Sale Sold out

Shipping calculated at checkout.

Out of stock

Request a Quote

+91 90129 4106 india@sumachay.com

Fast Shipping

Satisfaction Guaranteed

1 Year Warranty

Download Brochure

“Working with Sumachay has been a real pleasure They handled our machines assembly for Free, and their customer service is top-notch. we have purchased Two units from them and could not be happier with the quality and support.”

Karnataka Milk Federation (SHIMUL)

View full details

☑️ Compact design for tight spaces and easy steering.
☑️ Efficient AC drive system for reliable performance.
☑️ Low noise and vibration levels enhance operator comfort.
☑️ Strong lifting capacity up to 4.5 meters for diverse applications.
☑️ Durable PU/Solid wheels ensure smooth travel and long lifespan.

Description

Operators of any size can work comfortably. Adjust the seat and wheel for the best position.

Smart Wheelbase Design

The forklift feels lighter to drive, with better balance and control.

🔧 Specifications:

Model: SEF15
Type: Counterbalanced Electric Forklift
Capacity: 1500 kg
Lifting Height: 4.5 meters
Design: Compact & Narrow-Aisle Friendly
Steering: Electronic Power Steering
Customization: Full Free Lift Available
Brand: Sumachay (Trusted Canadian Brand, now in India)

📍 Ideal For:

Warehouses in Bangalore, Chennai, Hyderabad, Kochi, Coimbatore
Factories with tight spaces or indoor operations
Logistics companies working with containers
Businesses looking for a quiet, battery-powered, eco-friendly forklift

Product Details

Warranty Information

Your SEF1530 Electric Forklift comes with a 12-month warranty that begins on the date of purchase, as indicated on your invoice. This warranty covers comprehensive repairs in the event of a legitimate fault or breakdown. However, it does not extend to issues arising from normal wear and tear, accidents, negligence, or improper use.

Please note that this warranty is voided if the unit is used in environments where it is submerged in water or exposed to fluids or chemicals.

To ensure the longevity and reliability of your electric pallet lift, we strongly recommend adhering to routine maintenance. This includes regular cleaning, proper lubrication, and appropriate storage.

If you have any questions about your warranty or require service, please contact our customer support team for further assistance.

Technical Specifications

E1330GS Electric Pallet Truck Specifications

E1330GS Electric Pallet Truck – Technical Specifications

Feature	Specification
Model	E1330GS
Power Unit	Electric
Operation	Seated on
Rated Traction Weight (Q)	1500 kg
Load Centre (c)	500 mm
Axle Centre to Fork Face (x)	170 mm
Wheel Base (y)	1090 mm
Service Weight (with battery)	2220 kg
Wheels Type	PU / Solid
Driving Wheel Size (Φxw)	Φ250×127 mm
Bearing Wheel Size (Φxw)	Φ305×127 mm
Wheels (front/rear)	2/1x
Track Width (b10)	783 mm
Mast/Fork Tilt (forward/backward)	2° / 5°
Height of Mast (Lowered)	1995 mm
Free Lift (h2)	135 mm
Lift Height (h3)	4500 mm
Height of Mast (Extended)	3949 mm
Height of Overhead Guard (cabin)	1980 mm
Height of Seat/Platform (h7)	960 mm
Towing Coupling Height (h10)	450 mm
Overall Length (l1)	2465 mm
Length to Fork Face (l2)	1515 mm
Overall Width (b1/b2)	917 mm
Fork Dimensions (s/e/l)	35/100/950 mm
Width of Fork Carriage (b3)	220–606 mm
Width of Forks (m1)	90 mm
Min. Ground Clearance (m2)	90 mm
Aisle Width (pallet 1000×1200 across forks)	2865 mm
Aisle Width (pallet 800×1200 along forks)	2975 mm
Min. Turning Radius (Wa)	1348 mm
Travel Speed (laden/unladen)	6.2 / 7.2 km/h
Lifting Speed (with/without load)	135 / 215 mm/s
Lowering Speed (with/without load)	238 / 225 mm/s
Max Climbing Ability (with/without load)	4% / 10%
Service Brake	Electromagnetic
Drive Motor (60 min rating)	3.0 kW
Lift Motor (S3 15%)	4.5 kW
Battery (voltage/capacity)	24V / 400Ah
Battery Weight (±5%)	360 kg
Type of Drive Control	AC
Noise Level at Operator's Ear	≤80 dB(A)
Steering Type	Electric

Performance, Comfort, and Power – All in One

The E1330GS Electric Pallet Truck is designed for efficient, seated operation with excellent maneuverability and stability. Its high-performance motors and ergonomic control layout ensure smooth, fatigue-free material handling in warehouses, factories, and logistics environments.

Key Highlights:

Compact design for tight spaces and easy steering.
Efficient AC drive system for reliable performance.
Low noise and vibration levels enhance operator comfort.
Strong lifting capacity up to 4.5 meters for diverse applications.
Durable PU/Solid wheels ensure smooth travel and long lifespan.

Upgrade your operations with the E1330GS Electric Pallet Truck – built for durability, safety, and performance.
